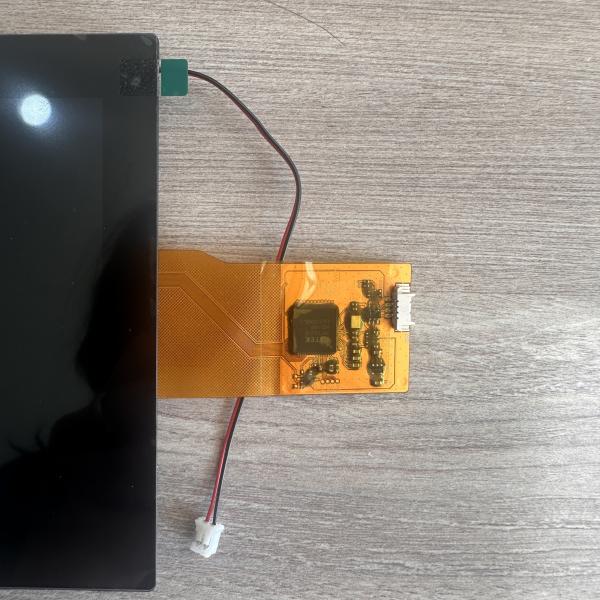

7.0-inch high-resolution display with 1200(RGB) × 1920 pixels for sharp and detailed visuals.
a-Si TFT transmissive technology delivering vibrant colors and excellent brightness.
Normally Black display mode for deeper contrast and improved image quality.
Wide viewing angles of 80°/80°/80°/80° (U/D/L/R) for consistent color and clarity from all directions.
Hard coating surface treatment for enhanced durability and scratch resistance.
MIPI interface for high-speed data transmission and easy integration.
Compact design with dimensions of 111.0(H) × 166.0(V) × 3.29(T) mm and active area 94.5(H) × 151.2(V) mm.
COG (Chip On Glass) packaging for slim profile and stable performance.

Applications

3.Interface Description
PIN	PIN NAME	DESCRIPTION	Remark
1	NC	No connection
23	IOVCC	PowerSupply 1.8V
4	GND	Ground
5	RST	RESET PIN
6	NC	No connection
7	GND	Ground
8	DON	MIPI Differential Data Input
9	DOP	+MIPI Differential Data Input
10	GND	Ground
11	DIN	MIPI Diferential Data Input
12	DIP	+MIPI Differential Data Input
13	GND	Ground
14	CLKP	MIPI Diferential Data Input
15	CLKN	+MIPI Differential Data Input
16	GND	Ground
17	D2N	MIPI Diferential Clock Input
18	D2P	+MIPI Differential Clock Input
19	GND	Ground
20	D3N	MIPI Diferential Data Input
21	D3P	+MIPI Differential Data Input
22	GND	Ground
23	NC	No connection
24	NC	No connection
25	GND	Ground
26	NC/TE	Svnc signal for touch panel.Float it if not used
27	NC/PWMO	PWM control signal for LED driver
28	NC/BIST	Enable the Test Image Generation function,fconnect to ground.Float it if not used.
29	NC	No connection
30	GND	Ground
3,132	LED-	BacklightLED-
33	NC	No connection
3,435	VSN	Analog supply negative voltage VSN=-5.8V
36	NC	No connection
3,738	VSP	Analog supply negative woltage VSP=5.8V
39.40	LED+	Backlight LED+
